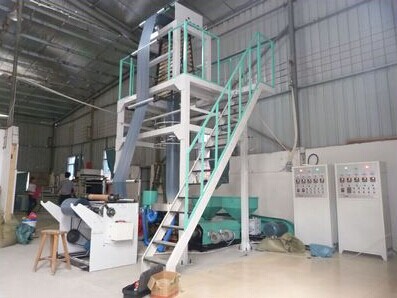

Express bag blown film machine

　　Overview of express bag film blowing machine: 1. Gearbox: 133 type x2 sets 2. Screw: diameter 50, length 1.4m, one set of cooling fan - cast aluminum heating x2 set 3. Tee: 180mm in diameter 4. Film head: 120mm in diameter (the price of film head is added, and one film head is provided by our machine) 5. Air ring: 800mm diameter single air outlet (optional double air outlet) 6. Main motor: 11kw (optional according to customer needs) 7. Host frequency conversion: 11kw (imported motor can be selected) x2 sets 8. Traction frequency conversion: 1.5kw (optional according to customer requirements) 9. Fan: 2.2kW (optional according to customer requirements) 10. Distribution box: 2 sets produced independently 11. Automatic air replenishment: 1 12. Embossing roller: no embossing roller for double-layer film blowing machine 13. Herringbone board: wooden bar type (aluminum stick type according to customer requirements) 14. Foam stabilizer: aluminum rod type 15. Traction clamping mode: Manual (pneumatic clamping can be selected) 16. Winding method: friction single winding (double winding according to the product) 17. Winding motor: 16N M each 18. Torque table: type 20a-3 19. Centering branch: None 20. Overall dimension of the machine: 6x2 6x4. 2 meters 21. Total power of the machine: 50KW 22. Average power consumption: 30kW / h 23. Maximum output: 60kg / h 24. Air pump: the Demander shall provide one 2.2kW air pump 25. Local materials: HDPE \ LDPE \ LLDPE can be used 26. Heating mode of the machine: electric heating 27. Type of heating ring: stainless steel heating ring, cast aluminum heating ring and high-frequency ceramic heating ring are mixed 28. Feeding mode: Manual (automatic feeding can be selected) 29. Voltage: 380V50Hz \ 60Hz 30. Machine weight: About 2500kg The machine can be selected according to different product requirements: rotating film head, double winding, traction lifting and full-automatic winding
