Product ID：BFQ Sort：Divide-pieces machine series Name：BFQ Series Surface-rolling Type Slitting & Rewinding Machine BFQ Series Surface-rolling Type Slitting & Rewinding Machine Application: This machine is suitable for slitting such packing materials as BOPP, OPP, PET, and PE, etc. especially having even better effect when slitting strings for garbage bag. Technical

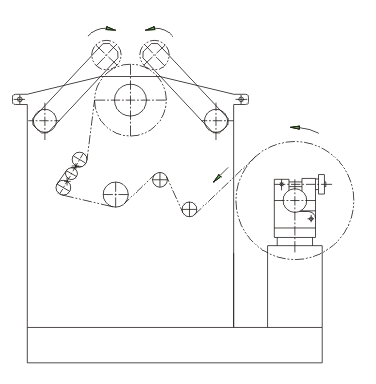

产品穿模图：
Main Technical Variables:
| Type | BFQ-600 | BFQ-800 | BFQ-1000 |
| Max. Width of Mother Roll | 600mm | 800mm | 1000mm |
| Max. Diameter of Mother Roll | ф600mm | ф600mm | ф600mm |
| Width of Final Roll | 20～600mm | 20～800mm | 20～1000mm |
| Slitting and Rewinding Speed | 5～120m/min | 5～120m/min | 5～120m/min |
| Tolerance of EPC | ＜±0.5mm | ＜±0.5mm | ＜±0.5mm |
| Total Power | 2.2Kw | 3 Kw | 3 Kw |
| Weight of Machine | 1200kg | 1400 kg | 1600 kg |
| Overall Dimension | 1900×1000×1300mm | 2300×1000×1300mm | 2500×1000×1300mm |
Performance and Features：
1. The main motor adopts imported variable frequency speed regulating.
2. Unwinding adopts magnetic powder brake tension and automatic deviation-rectifying.
3. Automatic meter counting and meter number setting for automatic stop.
4. Double air inflatable unwinding shaft can replace material quickly.
5. Material rolling adopts dead-weight type surface rolling.
